AT100 Alphanumeric Pager Advanced Encryption IP67

Rating: Categories: ,

Built-in Synthesized Crystal UHF 400~470Mhz and VHF 100~174Mhz frequencies can be programmed manually on the Device , Password Protected
IP 67 Approved Water-resistance and Dust Tight
White Back-Light, Large Screen
8 Line with Zoom Feature, Total 128 Alphanumeric One Page Display
16 Capcodes Slots
Memory Size; Total 128 Alphanumeric One Page Display

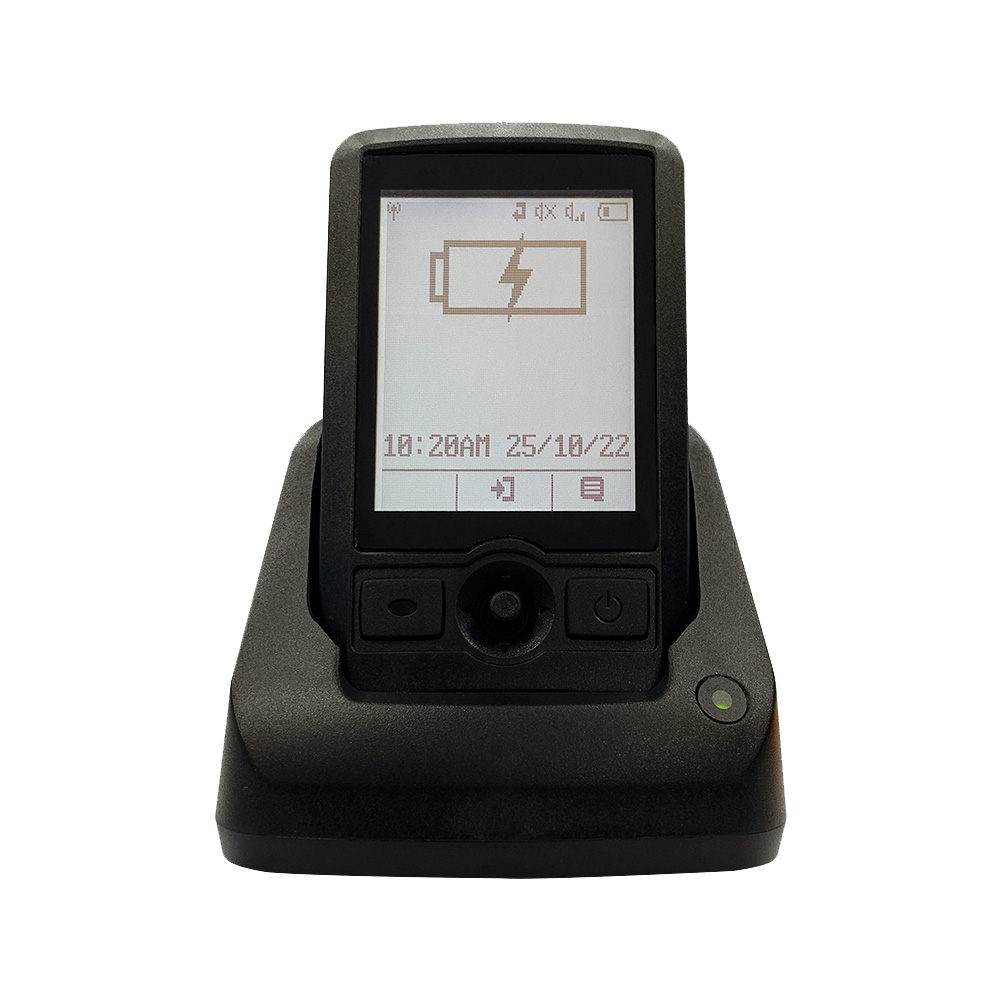

Desktop Charger
Heavy Duty
Easy Navigation

Product Description

• Advanced Encryption Paging
Loud Buzzer, Strong Vibrator
• 4 level beep volume
Five-way multi- function switch and
Two-big keys Operation, User Friendly Interface
16 Capcodes PC or hand Programmable
IP54/67 Approval . Water-resistance and Dust proof
White Back-Light,  Large Screen Size 1.5 Inch x 2 Inch
8 Lines, Total 128 Alphanumeric One Page Display
• Memory Size; Total Capacity 259,062 Letters
• General Message: 16 Slots + Message Full: 15 sets.
• Personal Message(Memo): 20 sets, Mail Drop: 15 Slots Available.
• 10 Sets for Messages Lock
• PC or hand Programmable
• Beep Alerts with LED Flash, Vibration,
Vibration Then(And) Beep, Flash Only
• Unread Message Reminder Alert
• Error  Duplicate  and Full Message Indicator
• Convenient Functions; 5 Daily Alarm, Auto
Scroll, Auto Sleep, Zoom In/Out
• Real Time Clock Calendar, User Selectable
12/24 Hour Clock
• Message Time Stamp
• Programming and charging via Type C
Lipo  3.7V 1150mAh Battery

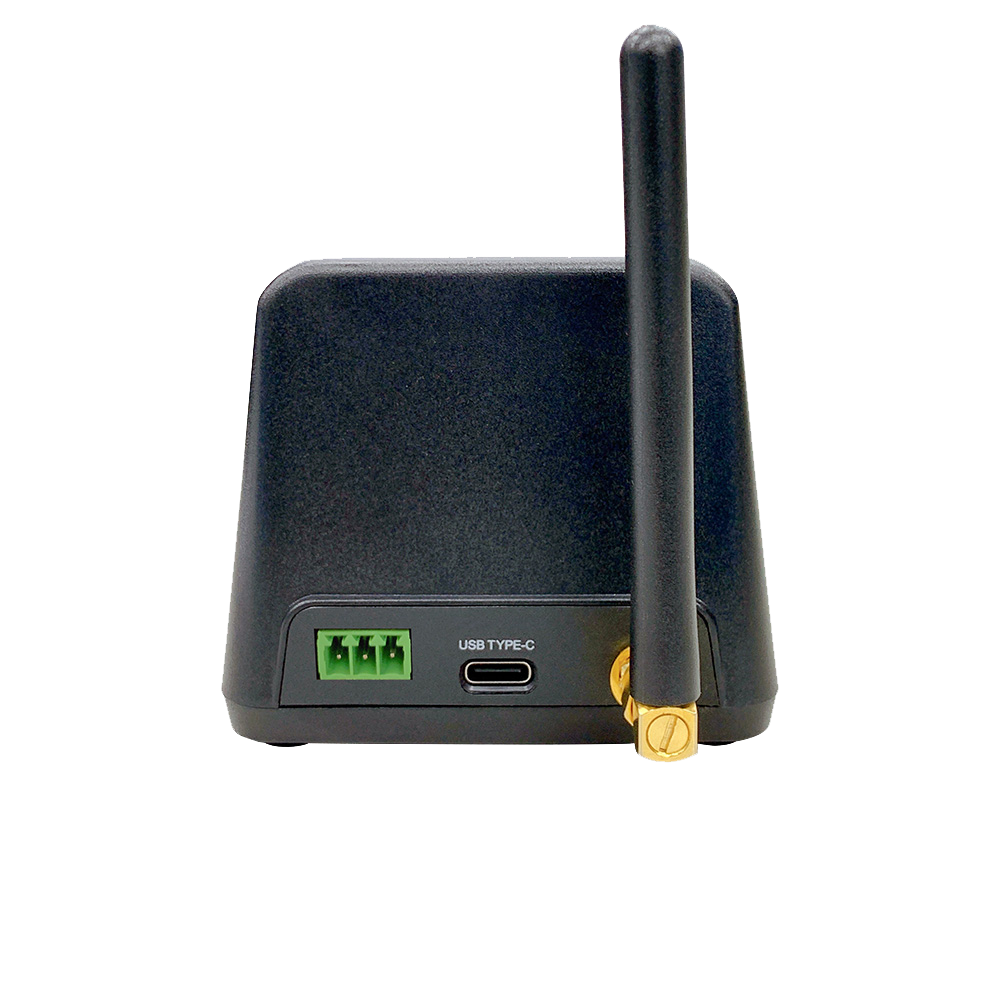

Optional Charger with relay output, alert amplify, SMA Antenna Gain Amplify
• Support Languages: English, Spanish, Portuguese, Russian, German, and French
• Month, Date, Year, Time Display

Specifications

FREQUENCY VHF 142~174 MHz, UHF 430~470 MHz
PAGING SENSITIVITY 512bps-3μV/M, 1200bps-4μV/M
EIA SELECTIVITY 60 dB ±25KHz
SPURIOUS REJECTION 55dB below carrier
IMAGE REJECTION 50 dB below carrier
FREQUENCY STABILITY ±2.5 KHz, ±4.5 KHz
CODE FORMAT POCSAG, FLEX
TRANSMISSION SPEED 512 / 1200 / 2400 bps for POCSAG, 1600 / 3200 / 6400 bps for FLEX
ALERT TONE LOUDNESS 90db @ 10 cm
BATTERY Lipo battery 3.7V 1150mAh
SCREEN SIZE 36.8mm x 49.6 mm
DIMENSION 94.5(L) x 54.6(W) x 23.2(H) mm

  • Synthesized For UHF & VHF Frequencies
  • On Device Programming, Password Protected
  • IP 67 Approved Water-resistance and Dust Tight
  • White Back-Light, Large Screen
  • 8 Line with Zoom Feature, Total 128 Alphanumeric One Page Display
  • 16 Capcodes Slots
  • Memory Size; Total 128 Alphanumeric One Page Display
